GB / T2951.11-2008 HH31113 Intelligent Auto Profile Projector
Intelligent Auto Profile Projector Product description:
Intelligent auto profile projector can fully auto measure the cross-sectional area of wire and cable insulation sheaths and conductive layer,
adopted optical and digital technology, the data after shooting is transferred into the full automatic program for processing, by image
recognition technology to measure specific values of the conductor and the insulation sheaths.
All the testing process is controlled by software, test results are automatically output.
Intelligent Auto Profile Projector Standard:
• GB / T2951.11-2008 Common test methods for insulating and sheathing materials of electric and optical cables--Part 11:Method for general application--Measurement of thickness and overall dimensions--Tests for determining the mechanical properties
Intelligent Auto Profile Projector Technical Parameters:
• Resolution: 1 μm
• Measuring range: 0 ~ 8mm, 8 ~ 30mm, 30 ~ 80mm, 80 ~ 140mm
• Lens fixed mode: fixed position and unmovable
Configuration and structure:
• Measuring lens: Japan computar, four pcs
• Moving gate power source: 12V DC motor
• Light source: bright SMD LED light source; adjustable internal light source, fixed back light source, opaque samples can be measured
• Optical system: vertical dust prevention optical system, reducing optical refraction
• Sample platform: flat tempered glass platform; the sample is
placed on the measuring glass for easy movement

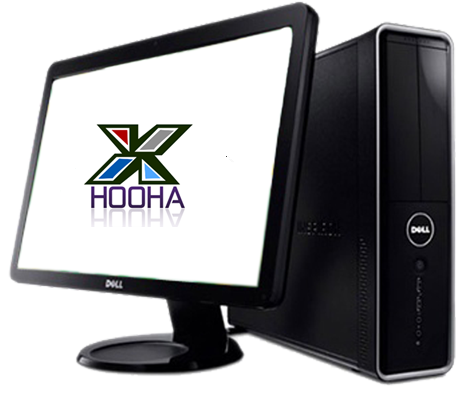

• Data connection interface: USB interface
• Main measuring program: auto release test reports which the information can be settable, saved and printed
• Database program: enable to manage the measurement data, and can be converted into EXCEL documents
• With a variety of cable standard measurement picture library to choose from
• Main body is box structure, reducing external light interference
Specifications:
• Overall dimensions: 580 × 430 × 1120mm
• Power supply: 220V / 50HZ
