CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery

Brand Name : HH

Model Number : 50+35/70

Certification : CE

Place of Origin : GUANGDONG,CHINA

MOQ : 1 unit

Price : 100000

Payment Terms : L/C, T/T

Supply Ability : 20 units/month

Delivery Time : 30 working days

Packaging Details : PE Foam

Application : CAT6A

PE : chemical foaming

twist : triple twist

cable twist : 100 m/min

Sheath : PVC/LSZH

PE foaming : 400 m/min

triple twist : 60 m/min

PVC sheath : 200 m/min

container : 3 x 40 ft

factory space : 1000-1500 m2

HS code : 8479400

Contact Now

CAT6A S/FTP Cable Making Machine

Product Description

CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery

1. 50+35 chemical foaming extrusion machine

Application it is for FOAM PE material to insulate

Insulated type Solid type low density , middle density, high density polythene. Physical Foam degree can reach to 30-65％
Copper wire inlet 0.52/0.56
Insulated core wire OD error

PE solid insulated wire ±1%

PE Foam Insulated wire ±2%

Insulated core wire capacitance average error ±1%

Foam insulated wire 400m/min
Central height 1000 mm
Take up bobbin size PN630

CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery

2.PLC 500 Double Layer Triple Twist Machine

1.Equipment composition

1.Upper layer: Single twist back machine

2.Down layer: Pair twisting machine

3.Single twist back-twist machine

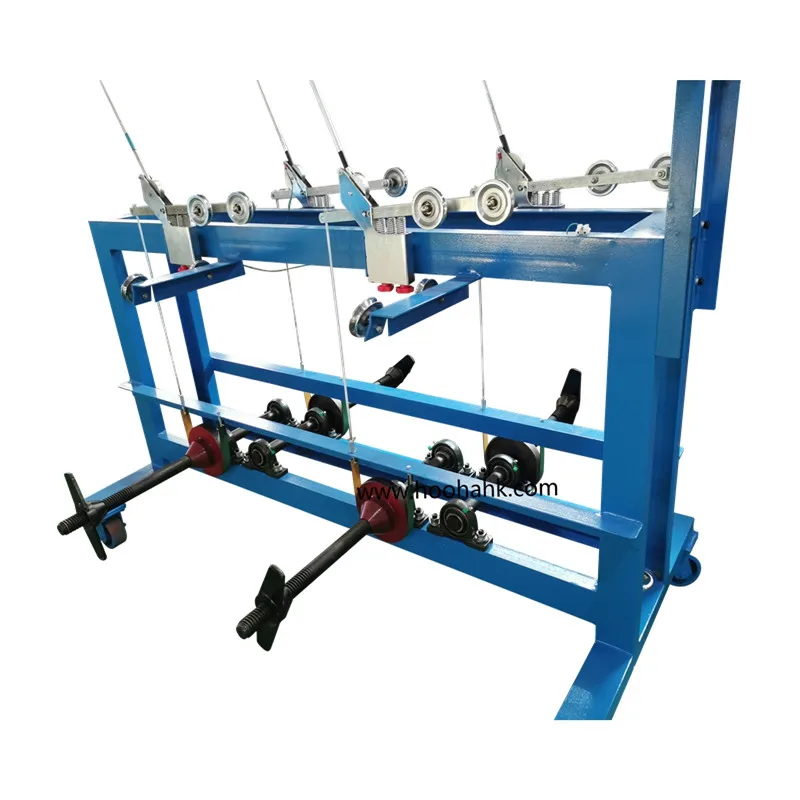

External power pay-off

(1) Applicable drum: Φ500mm*375*Φ56

(2) Applicable wire: production of insulated core wire

(3) Applicable wire diameter: Φ0.8mm --- Φ1.5mm

(4) Wire tension when untwisted: 0.6-3KG

(5) Maximum linear speed: 130m / min (depending on wire requirements)

(6) Braking device: motor (Taiwan Wanxin gear motor GV18-200W-5S) and dancing wheel

(7) Pay-off tension: 0.6-3KG (tension is adjustable)

Internal rotary horizontal power pay-off

(1) Applicable drum: Φ500mm*375*Φ56

(2) Applicable wire: production of insulated core wire

(3) Applicable wire diameter: Φ0.8mm --- Φ1.5mm; wire tension when untwisted: 0.6-3KG

(4) Maximum rotating speed of rotating object: 2000RPM, actual use: 1800RPM

(5) Maximum linear speed: 130m / min

(6) Power pay-off brake: motor (Taiwan Wanxin gear motor GV18-200W-20S) and dance wheel

CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery

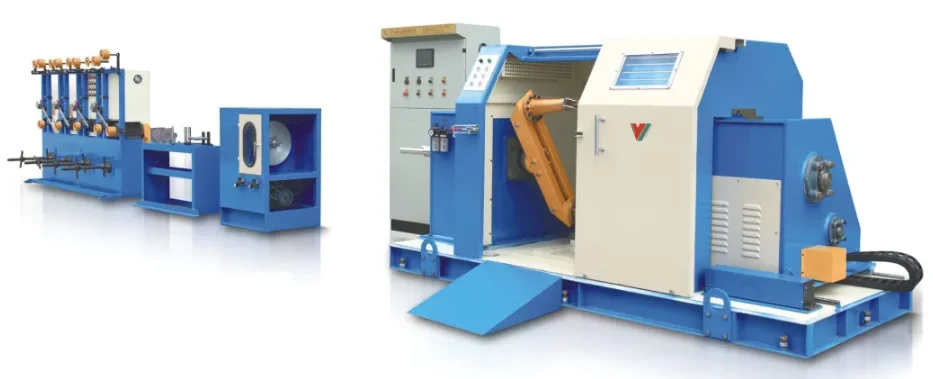

3.PLC 800 Cantilever Cable Twist Machine

CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
Application:
It is suitable for the twisting and synchronous winding of insulated core wires such as USB cable, electrical cable, communication cable and data cable etc. This single twisting machine is widely used in various types of wires and cables production process.
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery

Direction:

Right hand machine (facing machine, pay off at left hand, take up at right hand).

Color:

main color RAL5015 Blue, safety color yellow, electric box is white; (according to customer requirements)

other details

Power Supply: 380V 50HZ;

Compressed Air: 0.4-0.8Mpa;

Installed Capacity: 32KVA;


4.70 Jacket Machine(PVC/LSZH)

Application Apply to PVC,LSZH Plastic extruding,mainly used in different wire in sheathed and together at one time.

Main specification and Function

1.Sheathed OD range : 1.5-12.0mm

2.Extruder capacity :140kg/h (PVC)

3.Wire concentricity : above 95%

4.Line speed : According to wire diameter, 300-500m/min

5.Central Height of machine : 1000mm

6.Power : 3 phase 380V

Production Specs Qyt
1.800 mm Magnetic pay off stand 1 Units
2.Copper entire straight device 1 Unit
3.70 extrusion machine 1 unit
4.Hopper dryer and auto suction machine 1 Unit
5.1.5 meters movable water tank 1 Set
6.PLC control panel 1 Unit
7. Single direction laser gauge tester for cable diameter 1 Set
8.cooling water tank 1 Set
9.12 meters accumulator stand 1 Set
10.Meter devices 1 unit
11.Double wheels capstan 1 unit
12.15 KV Sparker 1 Unit
13.dual take up machine 1 Unit

5. 305 m/coil packing machine

CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery

CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery

The Technical Team
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
Hu,machine designer
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
Wen,plant engineer
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
Chen,senior engineer
Team of service
Name
education
Position
Mainly responsible for project
Specializing in project
Industry working history ( year )
zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15
xioahua Hu
college
Vis general engineer
The total project design and planning
net cable,data cable machine
10
Chnaghong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25
xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15
lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16
zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15
jinxin Liu
college
Marketing engineer
After service
electrical engineer
7
xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10
changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10
haipin Li
University
Engineering director
Marketing and sales
project consulting
8
sen Yang
University
Engineering translator
Marketing and sales
project consulting
5
Exhibition
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
India Exhibition
Hooha team participated in the international Wire Exhibition in India to find closer partners and exploit a larger international
market
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
Moscow Exhibition
Hooha team participated in the international Wire Exhibition in Moscow to find closer partners and exploit a larger internationa
market
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
Tailand Exhibition
Regional equipment exhibition held in Tailand in 2017
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
ShangHai Exhibition
In 2018, The International Equipment Exhibition was held in Shanghai, where foreign trade companies and suppliers from home and abroad gathered to learn from each other

Customer Cases
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
Hooha team in Algeria to provide technical support
American customers
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
Dubai customers
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
Egypt customers
CAT6A S/FTP Blue Wire and Cable Making Machine Cable Machinery
